MODEL: TS1500
CATEGORY: Self-Contained
STANDARDS:
ANSI Z358.1-2014, EN15154
SUITABLE FOR:
Indoor, Outdoor, Hazardous/Non-Hazardous Areas

KEY BENEFITS:
• Guarantees over 15 minutes of tepid water at correct pattern and flow rate
• Robust and corrosion resistant
• Highly visible in all conditions
• Easy to test and maintain

Need more information?

Category:

Description

1500L Tank-Fed Safety Shower with GRP header tank and stainless steel framework

  • Meets and exceeds ANSI and EN standards
  • Delivers over 15 minutes of tepid water without a mains water supply
  • Built from robust, corrosion resistant materials for a long and trouble-free life

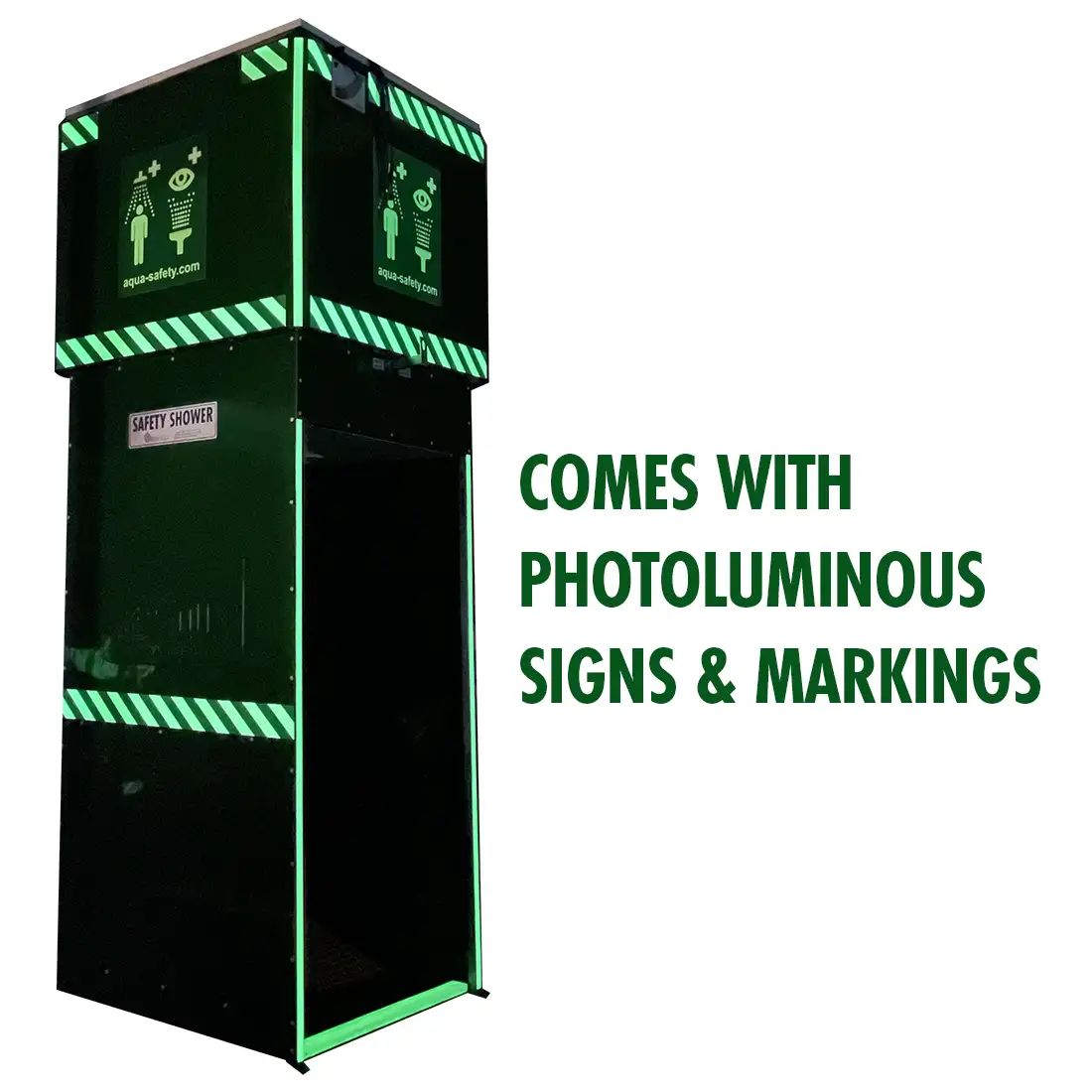

  • Illuminated signs means the shower can be quickly located, even in low light conditions
  • Comes with water level indicator, water temperature display and testing lever for easy testing and maintenance
  • Many optional extras are also available to suit your requirements

For 30 minutes tepid water, please see MODEL TS2500

Video

Technical Details

WATER SUPPLY PRESSURE 0.5 – 6 bar
TEMPERATURE -25°C to +35°C
(for temperatures exceeding 35°C, see MODEL TS1500CN. For temperatures below -25°C, see MODEL TS1500A)
INLET CONNECTION 1” BSPM (flanged options available)
SHOWER DRAIN OUTLET CONNECTION – if fitted 2” BSPF (flanged options available)
SCREENED OVERFLOW 40mm PVC-U
SHOWER FLOW RATE 76lpm
EYEBATH FLOW RATE Min 1.5lpm
BALL FLOAT VALVES for quick refill 2 x ¾” stainless valves with 6” stainless floats
SHOWER OPERATION Stainless Steel panic bar (GRP foot platform as option)
EYEBATH OPERATION Lift GRP lid (stainless foot operation as option)
SIGNAGE Self-adhesive photo-luminous pictorial signs
