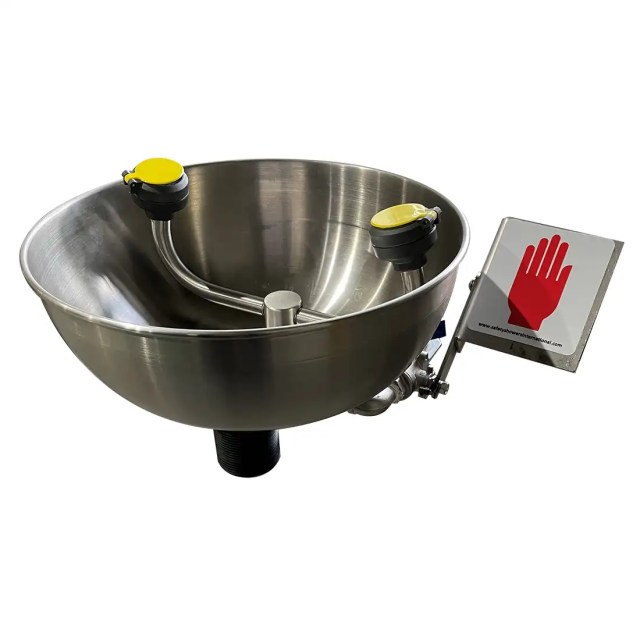

Open Bowl Eye Wash (Stainless)

MODEL: EB1S
CATEGORY: Eye/Face Washes, Mains-Fed
STANDARDS:
ANSI Z358.1-2014, EN15154
SUITABLE FOR:
Indoor, Outdoor, Hazardous/Non-Hazardous Areas

KEY BENEFITS:
• Corrosion resistant
• Stainless wall mounted bracket
• Compact unit to meet Health and Safety requirements



Need more information?
download button for this product's technical datasheet

Description

Open Bowl Eye Wash (Stainless)

  • Meets and exceeds ANSI and EN standards
  • Ideal for any environment where there is no risk of frost
  • Suitable for temperatures up to +30°C
  • Built from corrosion resistant stainless steel piping with wall bracket, operating valve and bowl
  • Easy activation via push plate delivers the necessary constant flow of water until switched off
  • Comes with two aerating nozzles and flip off dust covers
  • Covered in high-visibility, chemical resistant coating with ABS bowl
  • Optional extras available to suit your site requirements

For Heavy-Duty eye wash please see MODEL EB1

Our 316 stainless steel open bowl eye wash can be used in any environment where there is no risk of frost. Manufactured in accordance with ANSI Z358.1. and EN15154 and suitable for use in  hazardous and non-hazardous areas.

The eye wash unit is supplied together with stainless steel wall bracket for installation.

Technical Details

WATER PRESSURE 1.5 – 8 bar (recommended 2 bar)
TEMPERATURE 0 to +25°C
INLET CONNECTION  ½” BSP
FLOW RATE 22lpm
OPERATION Push plate
