Arctic Tank Shower

MODEL: TS1500A
CATEGORY: Self-Contained, Extreme Climates
STANDARDS:
ANSI Z358.1-2014, EN15154
SUITABLE FOR:
Indoor, Outdoor, Cold Climates (as low as -55°C), Hazardous/Non-Hazardous Areas

KEY BENEFITS:
• GUARANTEES 15 minutes of tepid water at correct flow rate and pattern
• Specifically designed for extreme cold climates
• Long-Lasting: Built from CORROSION RESISTANT materials
• Comes with water level and temperature gauge as standard

Need more information?

Description

1500L Arctic Tank-Fed Safety Shower with stainless steel framework

  • The TS1500A, Arctic Tank Shower is ideal for use in cold climates where freezing temperatures are likely or always present.
  • Our showers meets and exceed ANSI and EN standards
  • With a 1500 litre capacity tank, this shower will delivers over 15 minutes of tepid water without a mains water supply
  • Built from robust, corrosion resistant materials for a long and trouble-free life
  • Illuminated signs means the shower can be quickly located, even in low light conditions
  • Interior fitted with air heater, room stat and LED lighting as standard
  • Also comes with water level indicator, water temperature display and testing lever for easy testing and maintenance
  • A drain sump contains the water when released, keeping the surrounding area neat and tidy

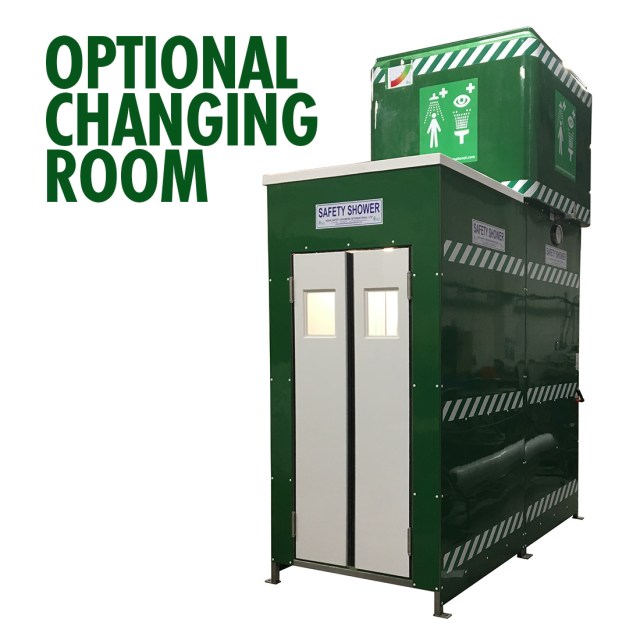

  • Many optional extras are also available to suit your particular site requirements and include an optional eye bath and changing room.

This tank fed safety shower is suitable for extremely cold climates and is fully compliant with ANSI
Z358.1-2014 and EN15154 standards. This tank shower guarantees over 15 minutes of tepid water without the need of a mains water supply. The shower comes as standard with an immersion heater, a water level indicator, a testing lever, an internal light, air heater and stat. The unit is also fitted with spring-loaded doors and a temperature gauge.

Video

Technical Details

WATER SUPPLY PRESSURE 0.5 – 6 bar
TEMPERATURE As low as -55°C
INLET CONNECTION 1” BSPM (flanged options available)
SHOWER DRAIN OUTLET CONNECTION 2” BSPF (flanged options available)
SCREENED OVERFLOW 40mm PVC-U
SHOWER FLOW RATE 76lpm
EYEBATH FLOW RATE – if fitted Min 1.5lpm
BALL FLOAT VALVES for quick refill 2 x ¾” stainless valves with 6” plastic floats
SHOWER OPERATION Panic bar (GRP foot platform as option)
EYEBATH OPERATION – if fitted Lift lid (stainless foot operation as option)
SIGNAGE Self-adhesive photo-luminous pictorial sign

Optional Extras
