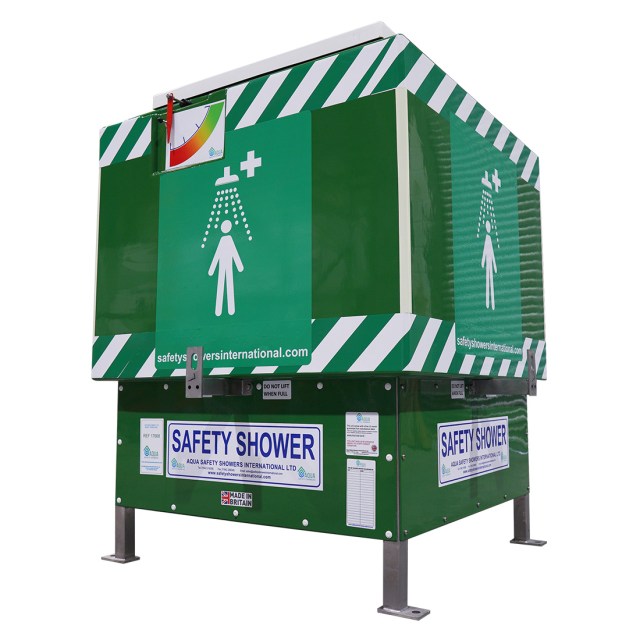

Remote Header Tank

MODEL: RT350 / RT1500 / RT2500
CATEGORY: Self-Contained
STANDARDS:
ANSI Z358.1-2014, EN15154
SUITABLE FOR:
Indoor, Outdoor, Hazardous/Non-Hazardous Areas

KEY BENEFITS:
• Available in 3 sizes (350L, 1500L, 2500L)
• Tepid water guaranteed to supply free-standing showers
• Supplied on stainless steel frame
• Easy to test and maintain

Need more information?
CONTACT US

Category:

Description

Remote GRP Tank on stainless steel supporting frame

  • Meets and exceeds ANSI and EN standards
  • Delivers tepid water to new or existing free-standing showers via gravity pressure or submersible pump
  • Available in 3 sizes: 350L, 1500L and 2500L
  • Built from robust, corrosion resistant materials for a long and trouble-free life
  • Illuminated signs means the shower can be quickly located, even in low light conditions
  • Comes with water level indicator, water temperature display for quick and easy maintenance
  • Many optional extras are also available to suit your requirements

Technical Details

WATER SUPPLY PRESSURE 0.5 – 6 bar
TEMPERATURE -25°C to +60°C (water chiller recommended for temperatures above 35°C)
INLET CONNECTION 1” BSPM (flanged options available)
OUTLET CONNECTION 2” BSPF
SCREENED OVERFLOW 40mm PVC-U
BALL FLOAT VALVES for quick refill 2 x ¾” stainless valves with 6” stainless floats
SIGNAGE Self-adhesive photo-luminous pictorial sign

Optional Extras
