Portable Self-Contained Safety Shower

MODEL: PS1 (without eye-wash) PS1-E (with eye-wash)
CATEGORY:  Portable, Self-Contained
SUITABLE FOR:
Indoor, Outdoor, Mobile/Temporary Use

KEY BENEFITS:
• Mobile & temporary use
• Easily manoeuvrable
• Optional insulated jackets
• Stainless steel frame

Need more information?

Description

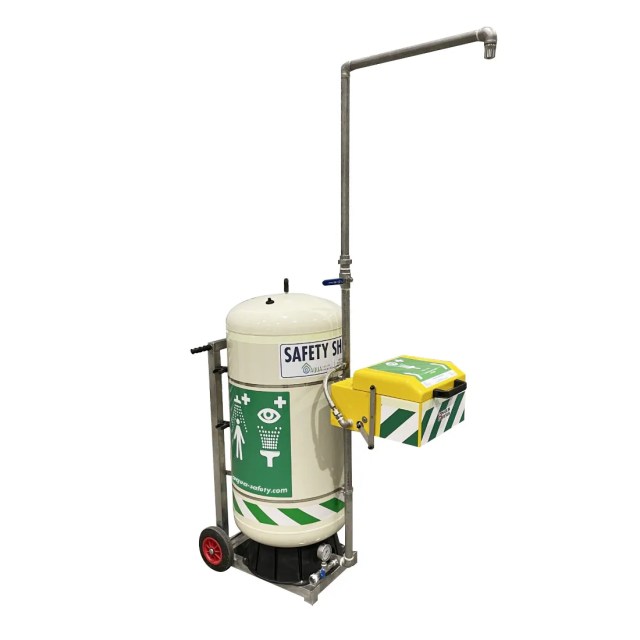

Portable Self-Contained Safety Shower

  • Our portable safety showers are ideal for mobile or temporary use
  • The shower is easily manoeuvrable by one person
  • The unit includes a high density water tank mounted on a stainless steel frame with heavy-duty pneumatic tyres
  • Holding capacity of the tank is 250 litres of water
  • Quick and easy to set up
  • We can also provide optional insulated and trace-heated jackets for this portable shower

The PS1 portable self-contained safety shower comes without an eye-wash station and the PS1-E includes an eye-wash. Both units are ideal as a temporary mobile unit where a quick safety solution is needed on site. This 250 litre capacity unit is easily manoeuvred into place with the attached stainless trolley. The unit comes with a polypropylene lined cylinder and stainless steel shower pipework.

Optional extras for the shower include insulate and trace-heated jackets. The insulated jacket can be provided with additional built in heating to guarantee the stored water does not freeze in severe weather conditions. The insulated jackets are manufactured using heavy duty UV stable PVC outer cloth, 50mm thickness insulation infill incorporating temperature rated silicone coated glass cloth on the inner face.

Where the jackets have built in heating, a frost protection self regulating heating cable system is installed to the inner face of the insulation jacket to compensate for heat loss and prevent the onset of freezing. This can be provided to suit both 240v and 110v power supplies. An inline thermostat limits the temperature to avoid any potential overheating.

An ATEX approved version is available, again in both voltage options.

Video

Technical Details

SIZE OF UNIT 250 Litre
SHOWER FLOW RATE 40 lpm
EYEBATH FLOW RATE 12 lpm
INLET 1/2” BSP
PIPING & VALVE MATERIALS Stainless Steel Piping/Plastic Overhead arm & Spray Nozzle
SHOWER OPERATION Handle
EYEBATH OPERATION (if fitted) Lift Lid
TEST PRESSURE 6 bar
OPERATING PRESSURE 3-4 bar
SIGNAGE Self Adhesive Pictorial Sign
SIZE (non-assembled) 118 x 53 x 136cm
SIZE (assembled) 153 x 58 x 215cm
WEIGHT EMPTY 85Kg (Approx)

Optional Extras
